OPEN WEDGE SOCKET

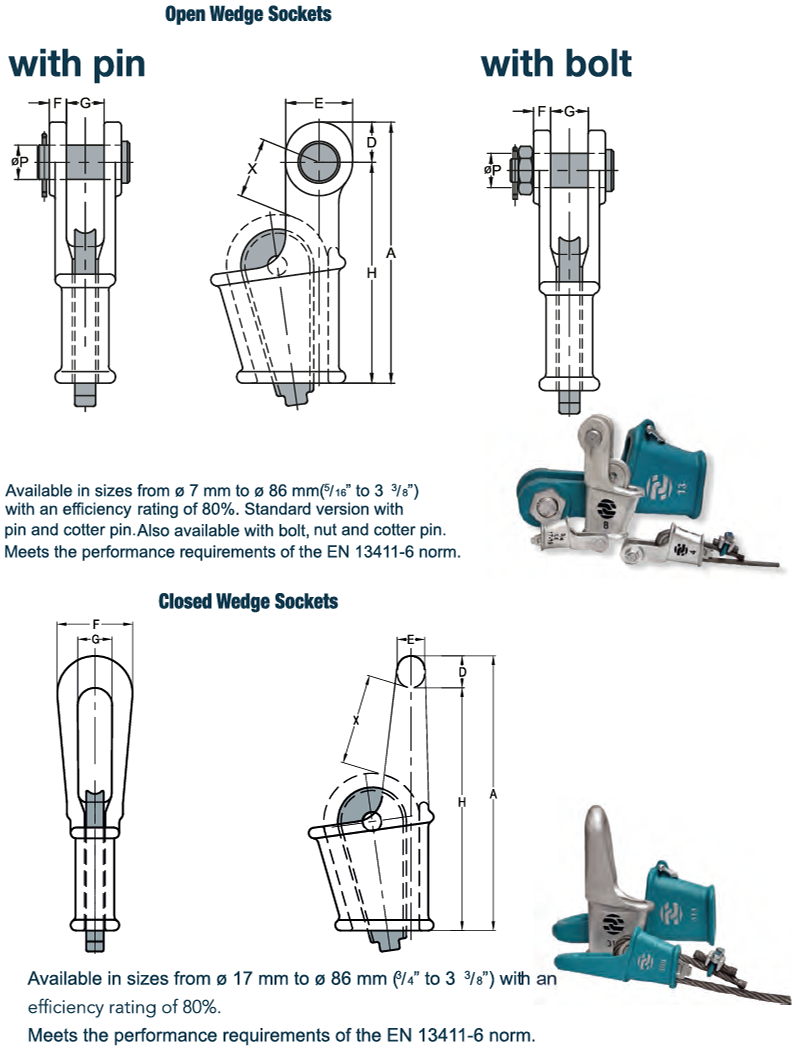

AQUALLINE OPEN WEDGE SOCKET. MM DIMENSIONS
|
Model |
MBL |
For Wire Rope |
Dimensions (mm) |
Weight |
|||||||
|
Number |
(Mtons) |
Ø mm |
A |
D |
E |
F |
G |
H |
Ø P |
X |
(kg) |
|
OWS 0.25 |
8 |
7 - 8 |
130 |
20 |
34 |
9 |
18 |
110 |
17.5 |
40 |
0.7 |
|
OWS 0.5 |
12 |
9 - 10 |
150 |
23 |
40 |
11 |
20.5 |
125 |
20.6 |
45 |
1.2 |
|
OWS 1 |
20 |
11 - 13 |
183 |
27 |
48 |
12.7 |
25.6 |
156 |
25.4 |
60 |
2.3 |
|
OWS 2 |
25 |
14 - 16 |
224 |
32 |
56 |
14.5 |
32 |
192 |
30 |
65 |
3.6 |
|
OWS 3 |
40 |
17 - 19 |
272 |
40 |
68 |
16.5 |
38 |
232 |
35 |
70 |
6.3 |
|
OWS 4 |
55 |
20 - 22 |
312 |
48 |
80 |
20.5 |
45 |
264 |
41 |
80 |
10.3 |
|
OWS 5 |
80 |
23 - 26 |
370 |
58 |
100 |
22.5 |
51 |
312 |
51 |
90 |
16 |
|
OWS 6 |
100 |
27 - 29 |
413 |
65 |
110 |
25 |
57 |
348 |
57 |
100 |
21.5 |
|
OWS 7 |
120 |
30 - 32 |
455 |
72 |
124 |
28 |
63 |
384 |
63 |
110 |
30 |
|
OWS 8 |
130 |
34 - 36 |
508 |
76 |
132 |
28 |
70 |
432 |
63 |
125 |
36 |
|
OWS 9 |
160 |
37 - 39 |
548 |
80 |
140 |
30 |
76 |
468 |
70 |
140 |
50 |
|
OWS 10 |
200 |
40 - 42 |
589 |
85 |
150 |
33 |
76 |
504 |
76 |
155 |
60 |
|
OWS 11 |
250 |
43 - 48 |
674 |
98 |
170 |
39 |
89 |
576 |
89 |
175 |
90 |
|
OWS 12 |
300 |
49 - 52 |
733 |
108 |
186 |
46 |
101 |
625 |
95 |
195 |
125 |
|
OWS 13 |
375 |
54 - 58 |
816 |
120 |
210 |
53 |
113 |
696 |
108 |
220 |
175 |
|
OWS 14 |
450 |
60 - 68 |
950 |
133 |
230 |
60 |
127 |
817 |
121 |
250 |
250 |
|
OWS 15 |
600 |
72 - 76 |
1057 |
145 |
250 |
76 |
146 |
912 |
133 |
280 |
400 |
|
OWS 16 |
650 |
81 - 86 |
1160 |
160 |
275 |
79 |
159 |
1000 |
140 |
330 |
515 |
MBL=MinimumBreakingLoad
X = Depending on the actual wire rope diameter, rope construction and fill factor
All sockets are supplied in a hot dipped galvanized finish. OWS 4 - OWS 16 are also available in aqua-blue primer (RAL 5018). For more information read our ‘Warnings and instructions for use’.
AQUALLINE CLOSED WEDGE SOCKET. MM DIMENSIONS
|
Model |
MBL |
For Wire Rope |
Dimensions (mm) |
Weight |
||||||
|
Number |
(Mtons) |
Ø mm |
A |
D |
E |
F |
G |
H |
X |
(kg) |
|
CWS 303 |
40 |
17 - 19 |
317 |
40 |
36 |
100 |
42 |
277 |
100 |
7 |
|
CWS 304 |
55 |
20 - 22 |
368 |
45 |
40 |
115 |
50 |
323 |
110 |
9 |
|
CWS 305 |
80 |
23 - 26 |
422 |
52 |
45 |
130 |
60 |
370 |
125 |
14 |
|
CWS 306 |
100 |
27 - 29 |
473 |
58 |
50 |
150 |
65 |
415 |
140 |
22 |
|
CWS 307 |
120 |
30 - 32 |
519 |
62 |
55 |
160 |
72 |
457 |
160 |
30 |
|
CWS 308 |
130 |
34 - 36 |
580 |
66 |
60 |
168 |
76 |
514 |
175 |
38 |
|
CWS 309 |
160 |
37 - 39 |
620 |
72 |
66 |
175 |
82 |
548 |
190 |
49 |
|
CWS 310 |
200 |
40 - 42 |
665 |
80 |
72 |
195 |
90 |
585 |
210 |
65 |
|
CWS 311 |
250 |
43 - 48 |
750 |
90 |
80 |
220 |
100 |
660 |
240 |
110 |
|
CWS 312 |
300 |
49 - 52 |
820 |
100 |
90 |
242 |
110 |
720 |
260 |
140 |
|
CWS 313 |
375 |
54 - 58 |
890 |
106 |
95 |
255 |
120 |
784 |
280 |
170 |
|
CWS 314 |
450 |
60 - 68 |
1045 |
120 |
105 |
280 |
130 |
925 |
330 |
240 |
|
CWS 315 |
600 |
72 - 76 |
1200 |
140 |
120 |
330 |
150 |
1060 |
400 |
380 |
|
CWS 316 |
650 |
81 - 86 |
1340 |
155 |
130 |
375 |
170 |
1185 |
475 |
490 |
MBL = Minimum Breaking Load
X = Depending on the actual wire rope diameter, rope construction and fill factor
All sockets are supplied in a hot dipped galvanized finish or available in aqua-blue primer (RAL 5018). For more information read our ‘Warmings and instruct ions for use’.
